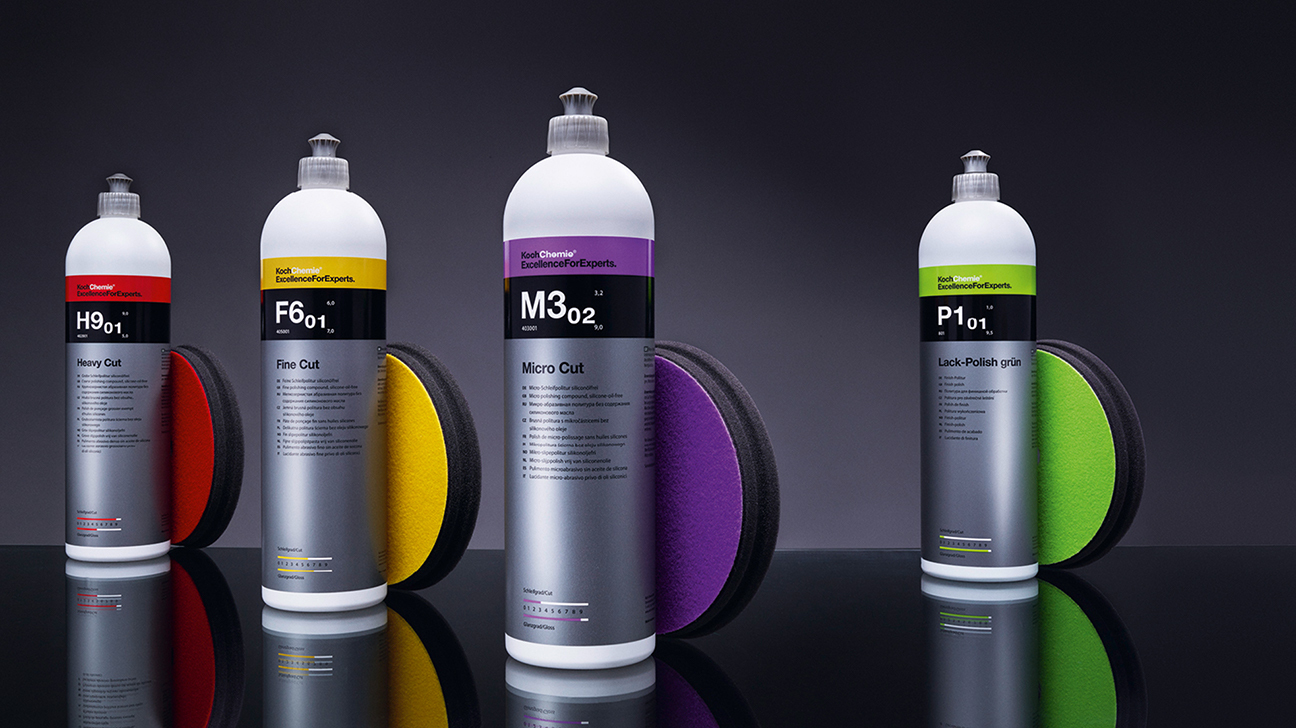

We have reduced the height of the pads to 23mm, resulting in a reduction of torsion forces, improved handling and maximum stability during the polishing process. The unique foam material produced especially for us has a special density, which ensures long-lasting compression resistance and thus the polishing pads retain their shape for a longer time.  Optimal reticulation and the number of cells both contribute to improved abrasiveness and excellent hygiene factors. Thanks to the milling edge, the pads have gained increased flexibility to better fit around contours. A distinction between the uniform black pads is made by the fleece, which is matched to the color code of the polishing compounds and thus offers the user even more process reliability. The new color coordinated dust free single packaging of the pads ensure you’ll make the right choice.

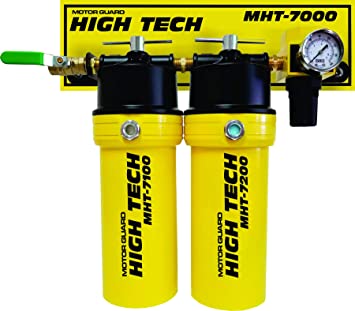

Motor Guard’s MHT-7000 offers six stages of air prep in a single unit and provides for the quickest, cleanest cartridge change in the industry.

Motor Guard introduces the most advanced air preparation system for spray booths and critical refinishing operations. The Motor Guard High Tech Air Preparation System (MHT-7000) offers six stages of air prep in a single unit and provides for the quickest, cleanest cartridge change in the industry.

The MHT-7100 Compressed Air Filter is a high-volume water trap combined with a particulate and oil filter that features Motor Guard’s exclusive hydrophillic depth cartridge which filters to an incredible .01 micron rating. The cartridge was developed to trap oil, water and particulates in between the tightly wound sheets of high-efficiency media. A drop-in replacement cartridge (M-710) and spin-off T-handle provide for a rapid cartridge change.

The MHT-7200 Compressed Air Desiccant Dryer features a unique cartridge that combines an activated carbon inner element to remove oil vapor to less than .003 ppm with a high-capacity silica gel desiccant dryer that delivers an incredible -40ºF dew point to the spray booth. Two full quarts of silica gel desiccant beads ensure a long filter life and a sealed, disposable cartridge (M-720) and spin-off T-handle provide for a quick and clean cartridge change. A color-change (blue to pink) sight glass signals the need the replace both cartridges.

The MHT-7300 Compressed Air Precision Regulator is a high-quality, true diaphragm regulator designed to set and hold outlet pressure over a wide range of flows and conditions. A high-visibility, multi-scale pressure gauge features a scratch and solvent proof glass lens that will outlast all competitive gauges.

The MHT-7000 High Tech Air Filtration System is the latest addition to a full line of repair and refinishing products. From Pulling to Painting, Motor Guard has a product for all of your auto body repair and refinishing needs.

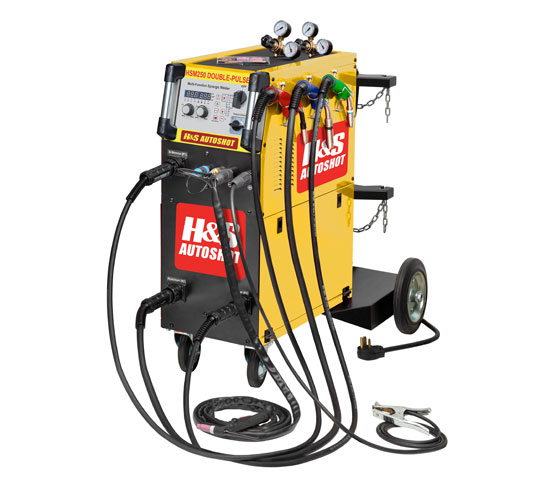

System features IGBT high efficiency inverter power supply with epoxy sealed components in a full size shop cabinet with the highest duty-cycle rating in class. Operating features include digital control panel with 28 pre-loaded synergic pulse programs, infinitely variable output power from 10-250 amps and operator selectable pre & post gas, slow feed, burn back, spot, ramp, slope, frequency, duty, arc length, spool gun, hot start, and arc force.

Package includes double pulse synergic inverter power supply with three dedicated MIG guns, compact TIG torch with thumb-wheel control and quick-connect welding cable 12.5’, 250A work clamp with quick-connect welding cable 10’, 250-amp electrode holder with quick-connect welding cable 10’, dual gas regulators, AK-2 torch kit, spool of steel, aluminum and silicone bronze wire, “V” & “U” drive rolls and operator manual.

DOWNLOAD » HSM250 Specification Sheet
DOWNLOAD » HSM250 User Manual

Input Power: 208-240VAC Single-P 50/60 Hz
Output Power: 30-250 Amps (DCV)
Input Current: 35 Amps (NEMA 6-50P Cord)
Duty-Cycle: 35% @ 250 Amps
Dimensions: 40” x 24” x 36.5” (102 X 61 X 93)
Weight: 185 Lbs. (84 Kg)
Inner carton: 33.5” X 24.8” X 34.25” (85 X 63 X 87)
Shipping Weight: ~200 Lbs.
