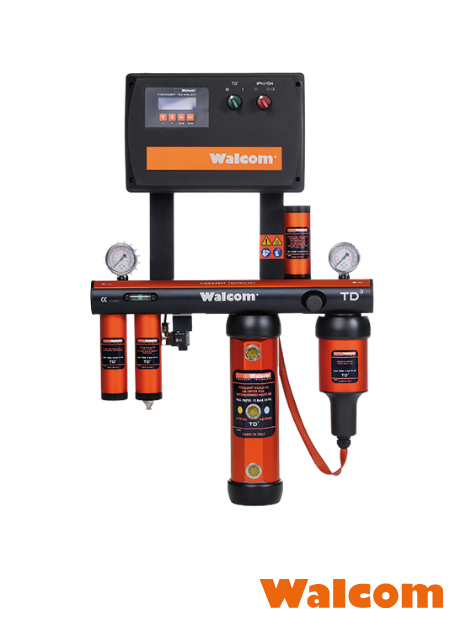

Walcom: TD3 Pro – Cabin Booth Intergrated Air Conditioning And Thermo Regulation System

Description

Walcom: TD3 Pro – Cabin Booth Intergrated Air Conditioning And Thermo Regulation System

60151**Cabin booth integrated air conditioning and thermoregulation system Central Body Anodised aluminiumComposition:1) Synthetic fibre pre-filtering element that eliminates condensation. Automatic drain with safety rod for manual drain.2) De-greaser filter to eliminate residual pollutants. Manual drain.3) Drying group with silica gel that reduces residual humidity in compressed air. Possibility or silica gel regeneration with TD3 Pro hot air flow SRS valve. Silica gel lasts max 1 year.4) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m^35) Heating elemenent with 1200 W power controlled by an electronic unit with PID retroactive system and SCR heating power regulation. Pressure regulator Membrane regulation and automatic decompression Air inlet F 1/2Air outlet F 1/2Filtering Power Air 5µ – oil 0.01µWorking pressure12 bar Air consumption1200 l/min to 6 barWeight21 Kg Combatible tube ThT (12 m) – Ref.60161ThT (17 m) – Ref.60163ThT (22 m) – Ref.60162** Ref./T = with 1 remote control
